Aventon

Level 3 Ebike

Level 3 Ebike

$1,899.00 USD
$1,899.00 USD
Sale Out of Stock

A $180 assembly fee for this bike will be added to your shopping cart at checkout.

Size
Color

Low stock: 1 left

Avaliable in Store Only

Usually Ready in 24 Hours

810097172807

NO SHIPPING or DELIVERY

All Bicycles Sales are Pickup in Store Only!

RETURN POLICY

All bicycle sales are final and cannot be returned. We recommend you reach out before purchasing a bike to ensure it is a good fit for your needs.

Read our full return policy here

Every bike is professionally assembled by well trained mechanics. After your first 90 days of riding, cables stretch and brakes bed in. To keep our customer riding safe we offer a complimentary 90-day Tune with every bike purchase along with free small adjustments for your first year!

210000050577

View full details

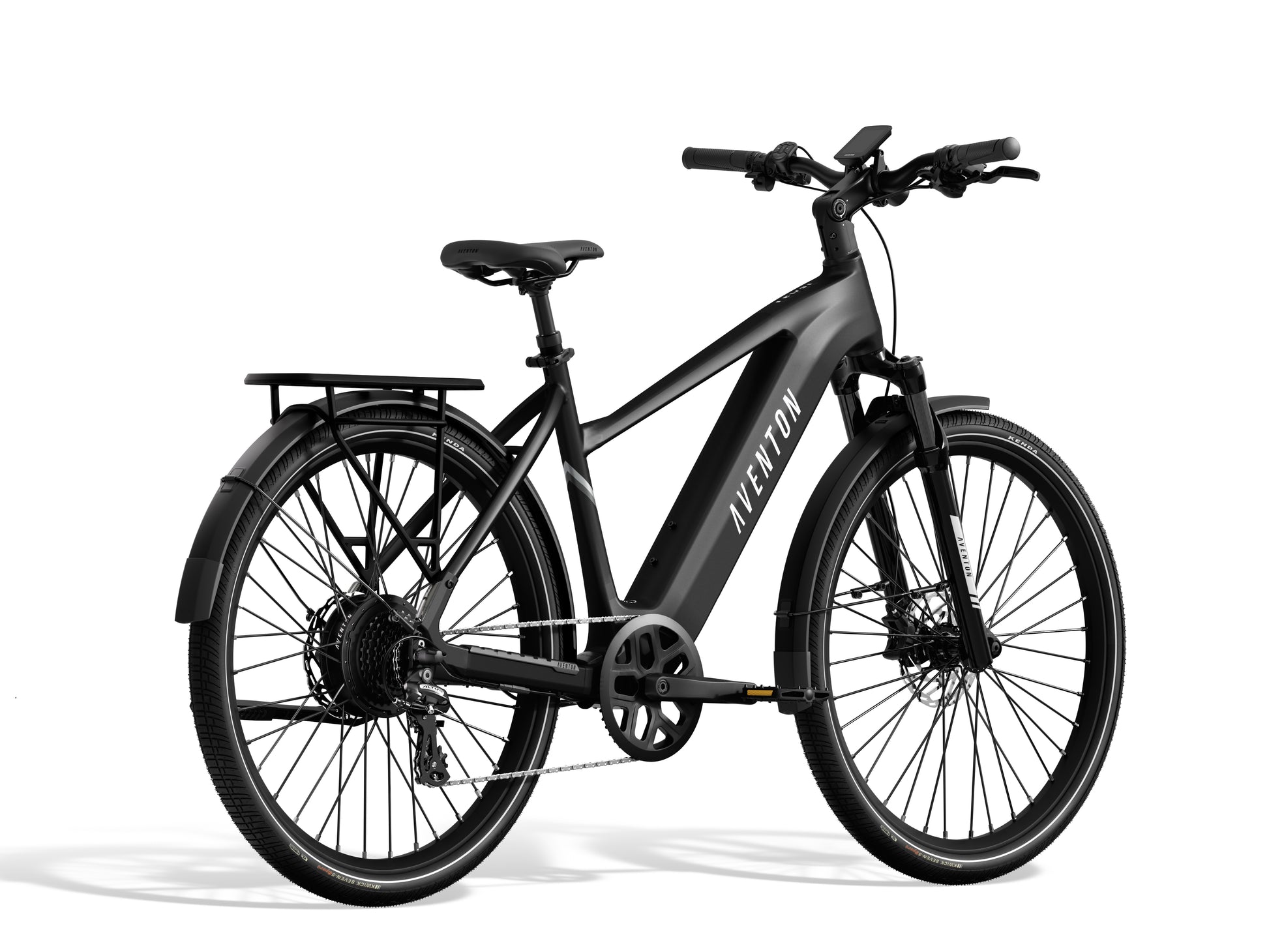

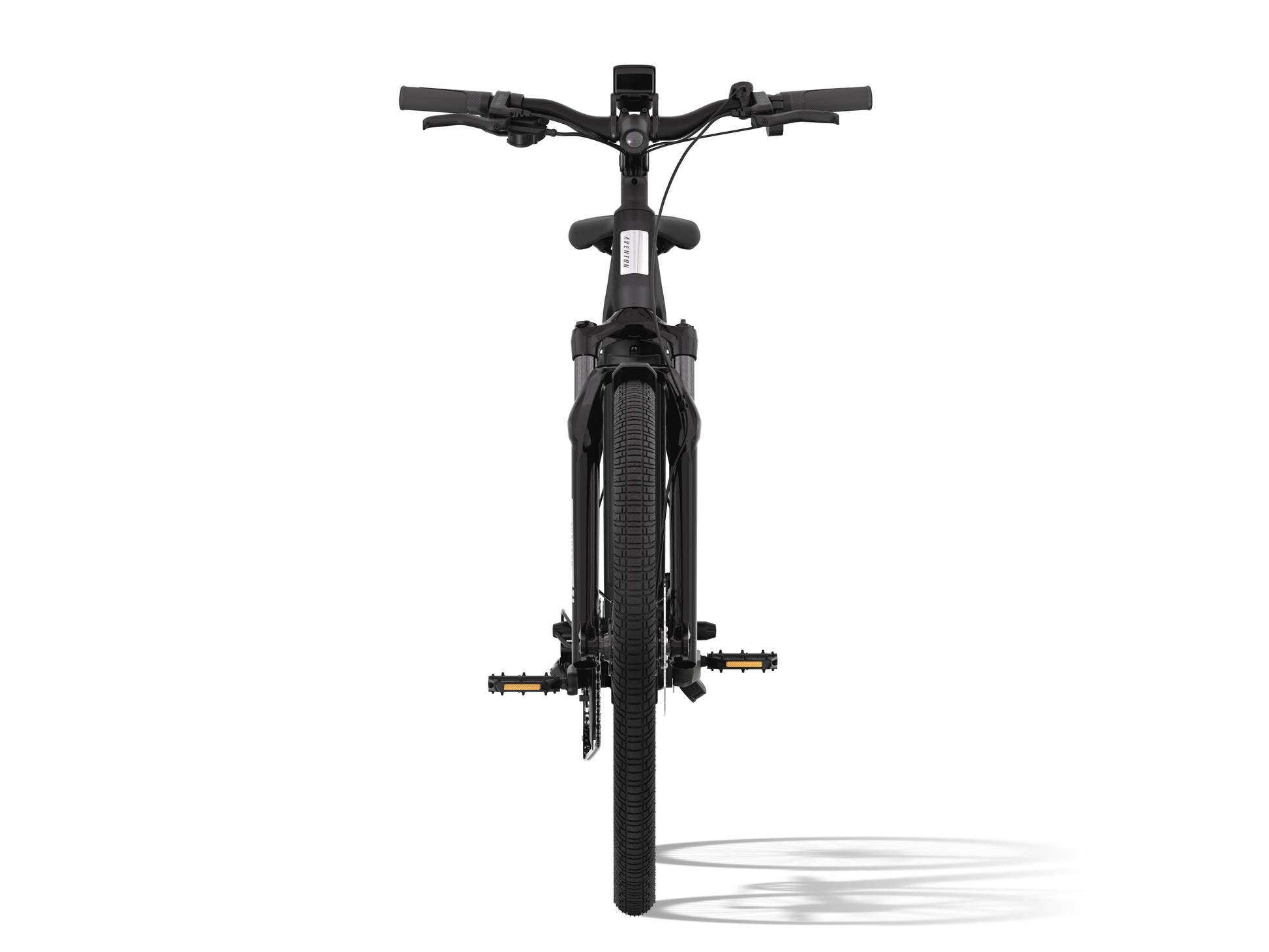

The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor.

General Info
Model
Level 3 Commuter Ebike
Weight
67lbs
Total Weight Limit
300 lbs
Box Size
61"x13"x34"
Rider Height
5'3" - 6'4"
Ebike Class
Class 2 Ebike
Water Resistance
IPX4
Range
Up to 70 Miles
Battery Safety Certifications
Certified to UL 2271
Safety Certifications
UL Safety Certified
UL 2849
Ideal Use
Commuting
Pedal Assist
3 Levels (with Ride Tune Customization)
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon Suspension Fork, 80mm travel, w/ lockout coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing
142mm
Fork Spacing
110mm
Frame Style
Step-Over
Wheelset
Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Schrader Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System
Motor
36V, 500W (sustained), 864W (peak)
Motor Torque
60Nm
Display
Aventon BC280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V, 24A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Speed
Class 2
Brakes
Front Brake
Magura AT-2 Hydraulic disc brake
Rear Brake
Magura AT-2 Hydraulic disc brake
Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Chain
7/8 speed 120L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
48T
Chainring BCD
104
Crankset
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed Bearing Headset
Included Accessories
Fenders
Included
Rear Rack
Included
Rear Rack Weight Limit
60lbs

Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
