Aventon

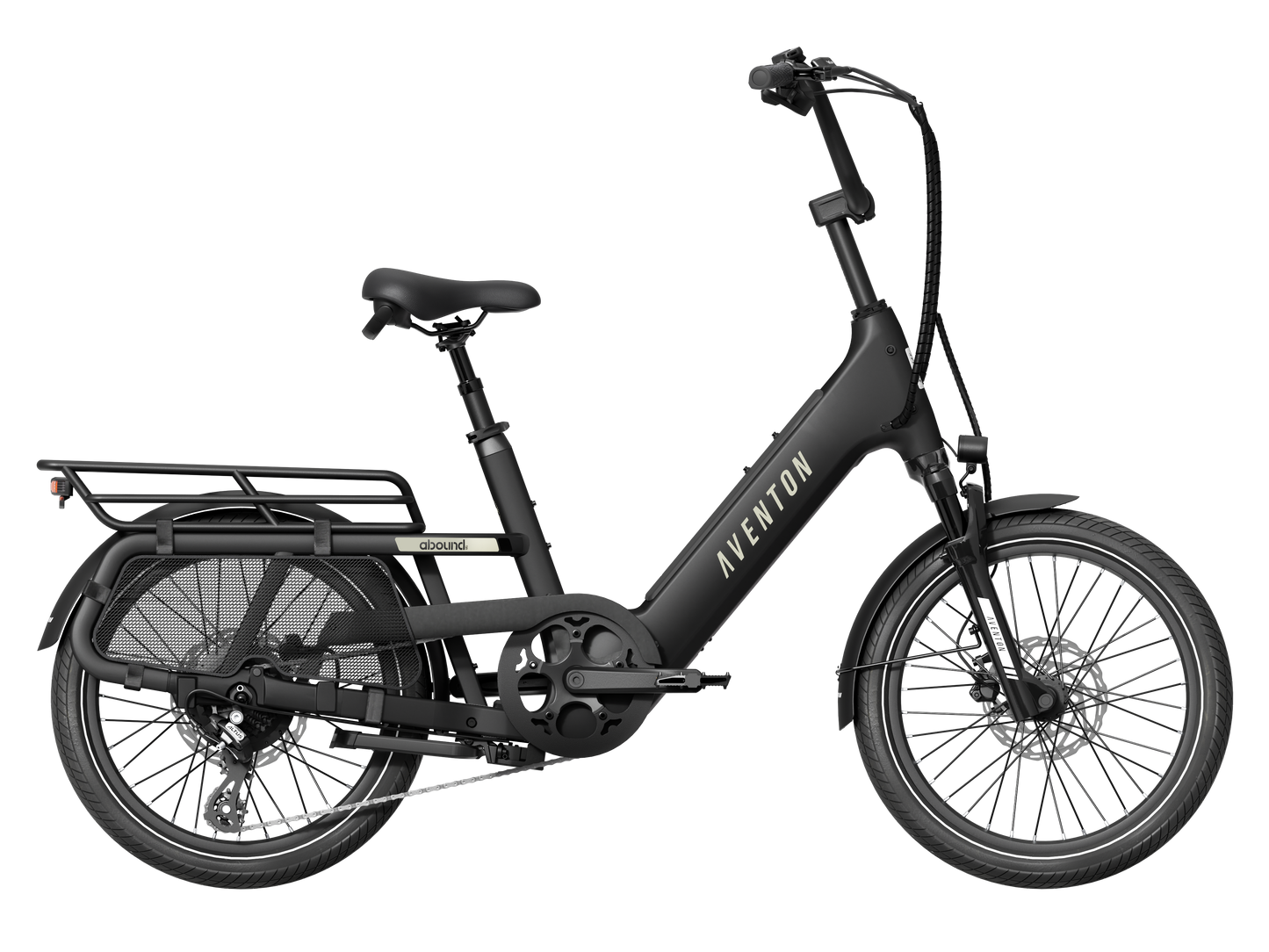

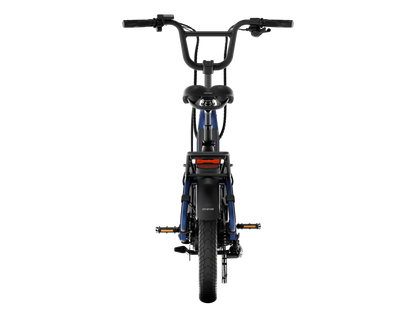

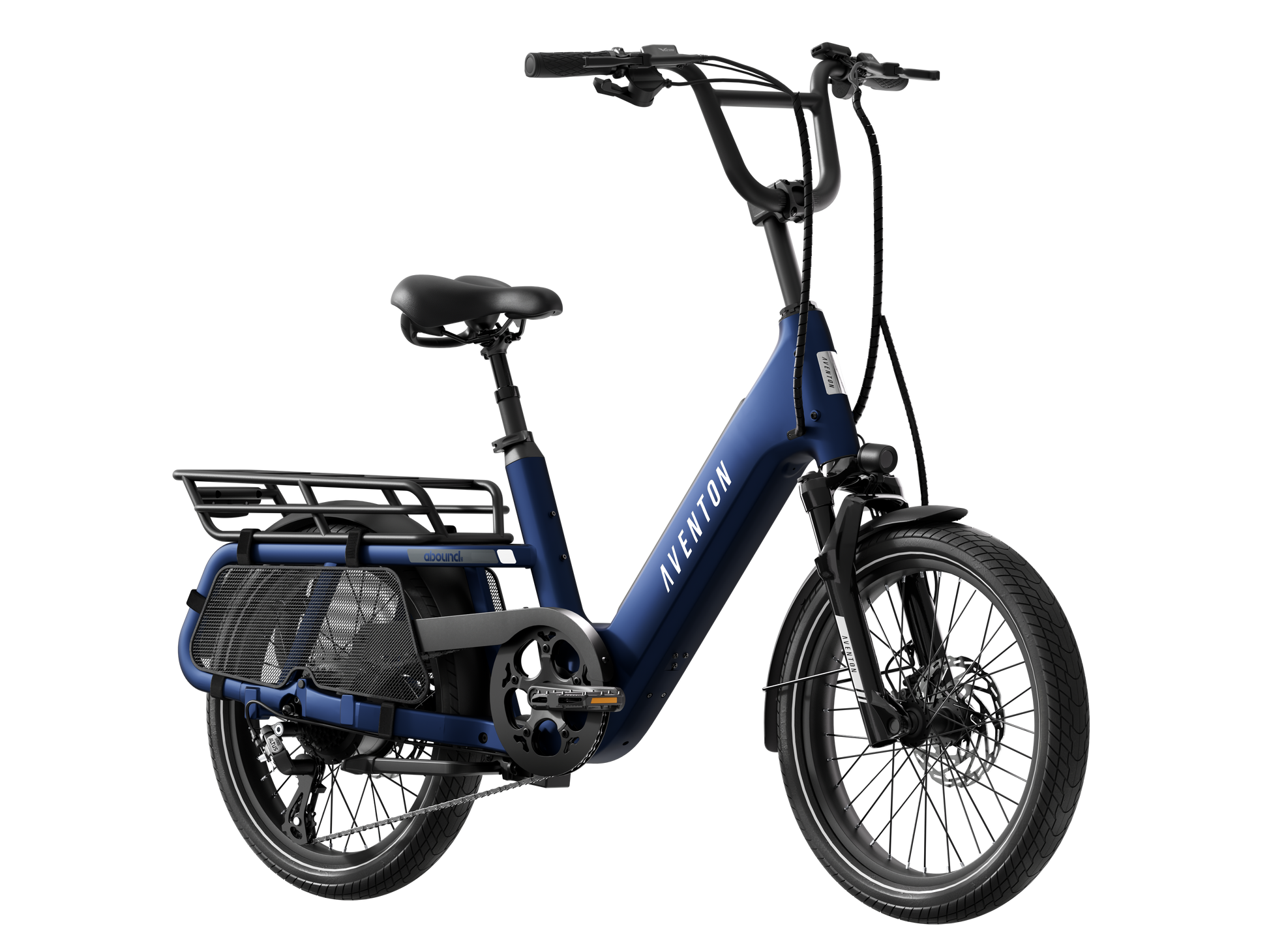

Abound SR Ebike

Abound SR Ebike

$1,899.00 USD
$1,899.00 USD
Sale Out of Stock

A $180 assembly fee for this bike will be added to your shopping cart at checkout.

Color

Out of stock

Avaliable in Store Only

Usually Ready in 24 Hours

810097171022

NO SHIPPING or DELIVERY

All Bicycles Sales are Pickup in Store Only!

RETURN POLICY

All bicycle sales are final and cannot be returned. We recommend you reach out before purchasing a bike to ensure it is a good fit for your needs.

Read our full return policy here

Every bike is professionally assembled by well trained mechanics. After your first 90 days of riding, cables stretch and brakes bed in. To keep our customer riding safe we offer a complimentary 90-day Tune with every bike purchase along with free small adjustments for your first year!

210000050568

View full details

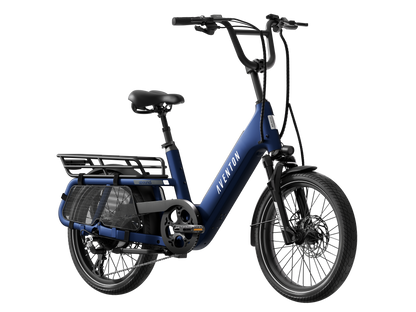

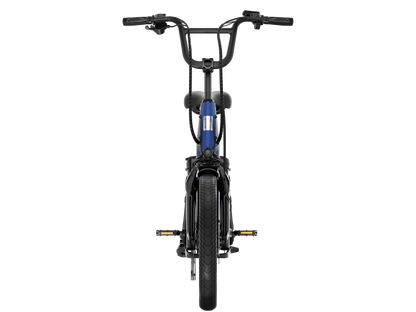

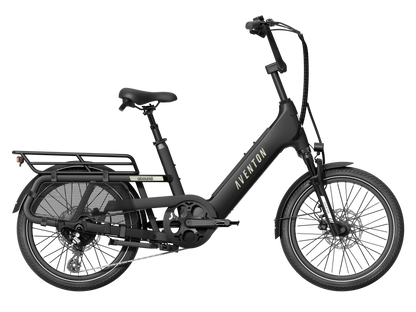

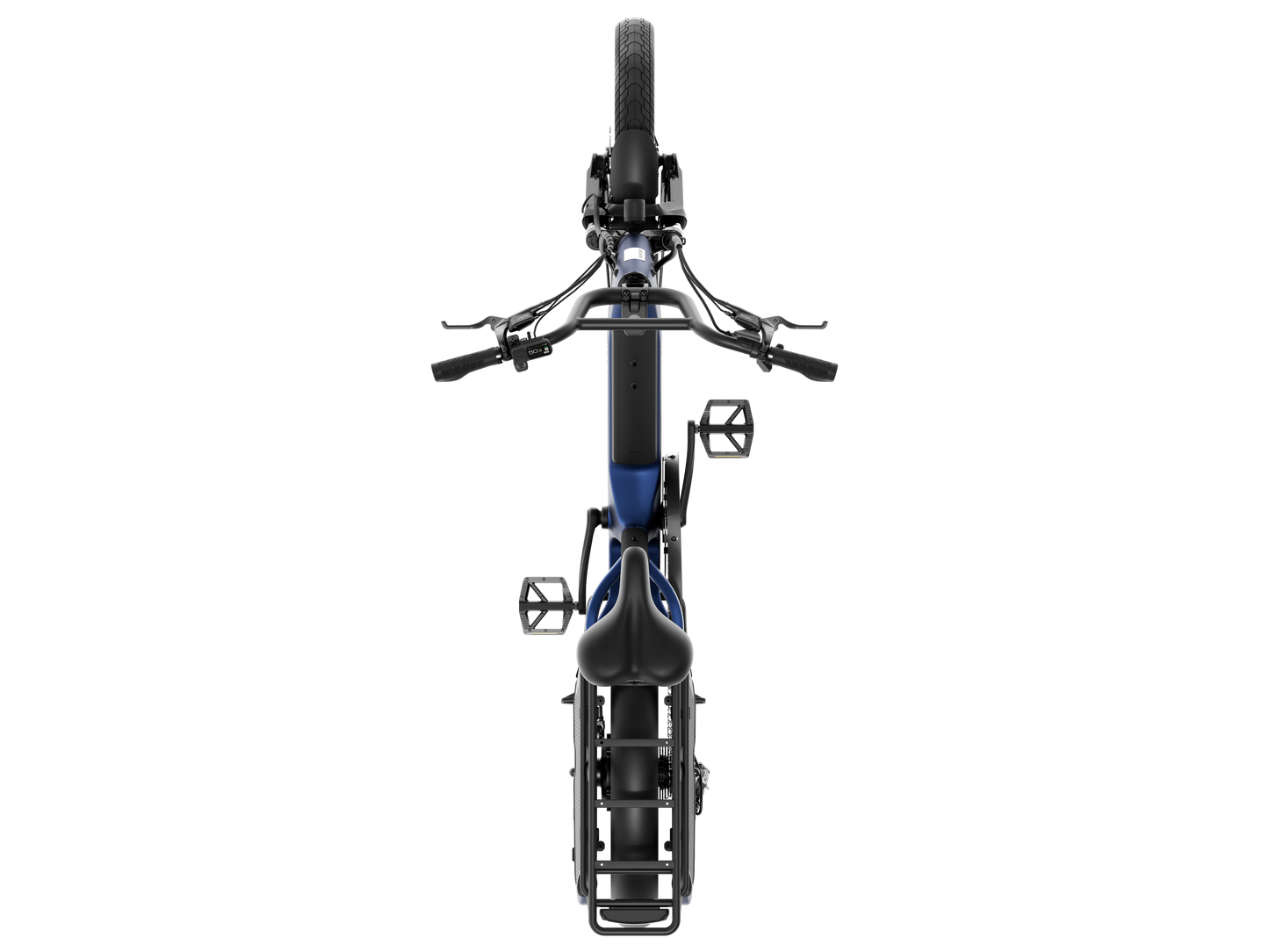

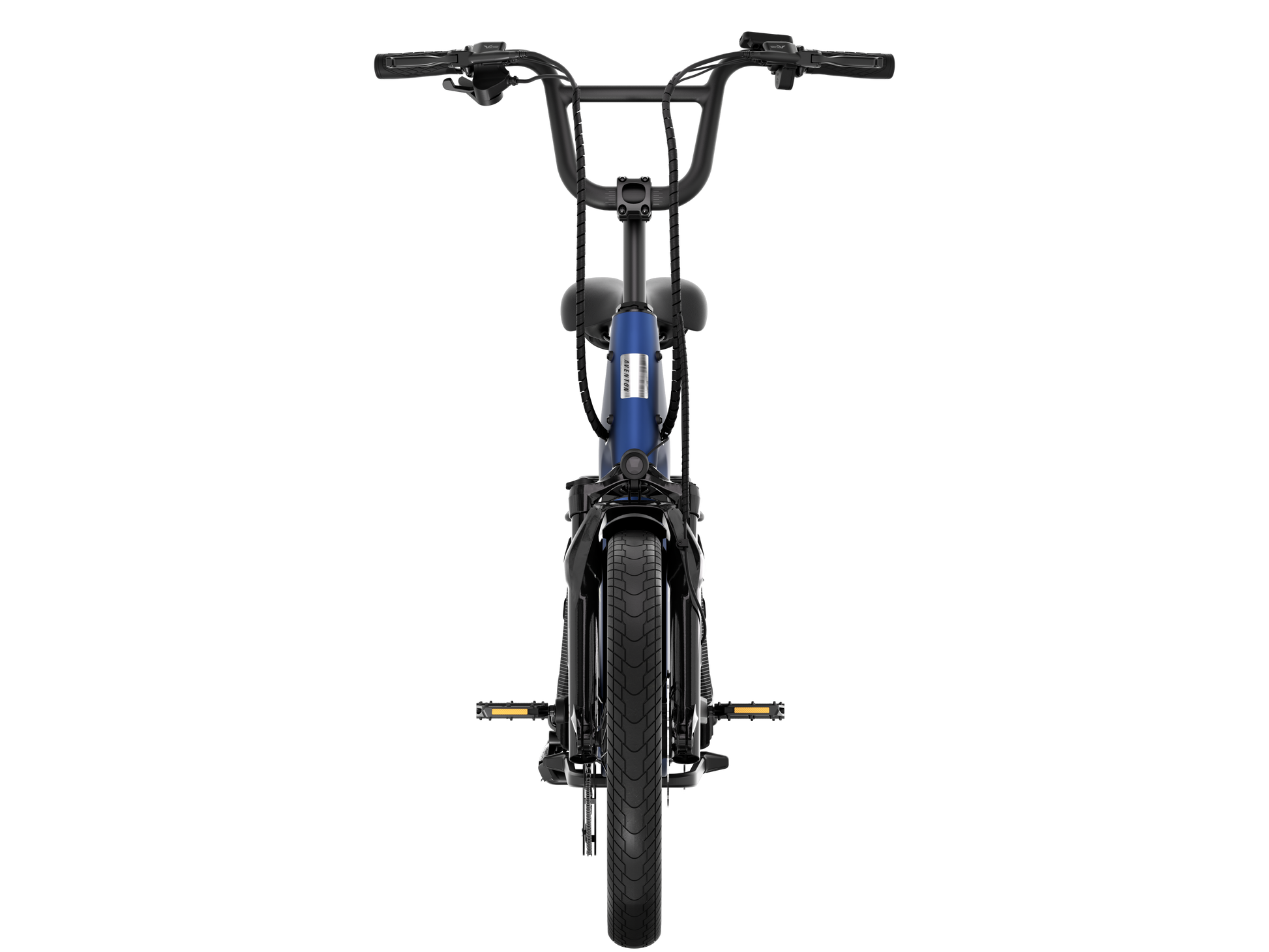

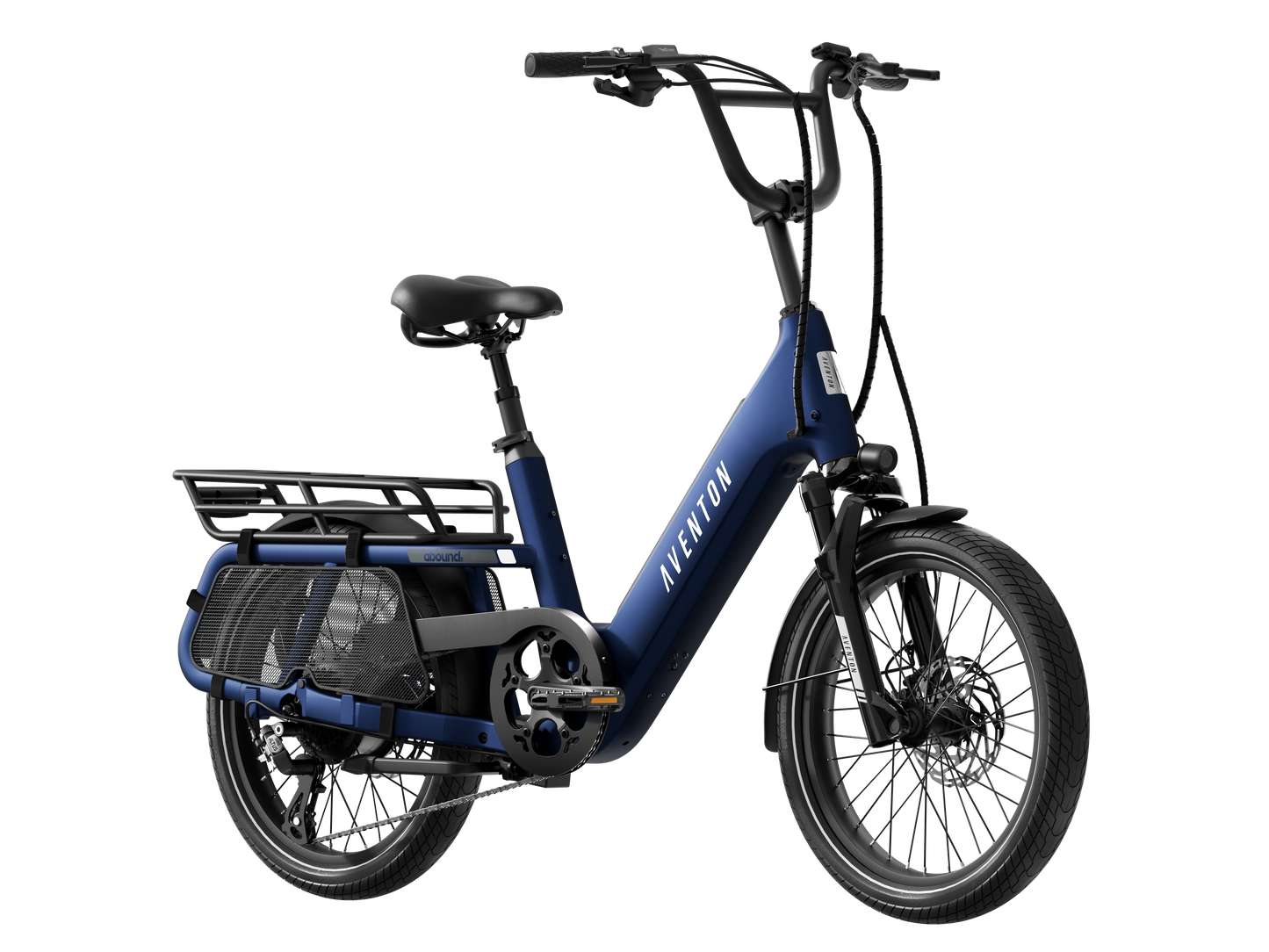

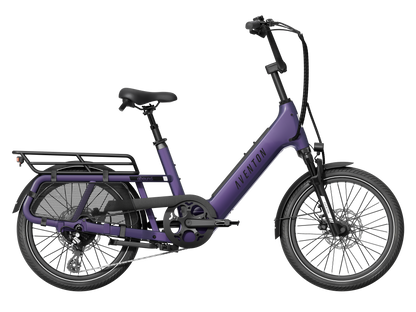

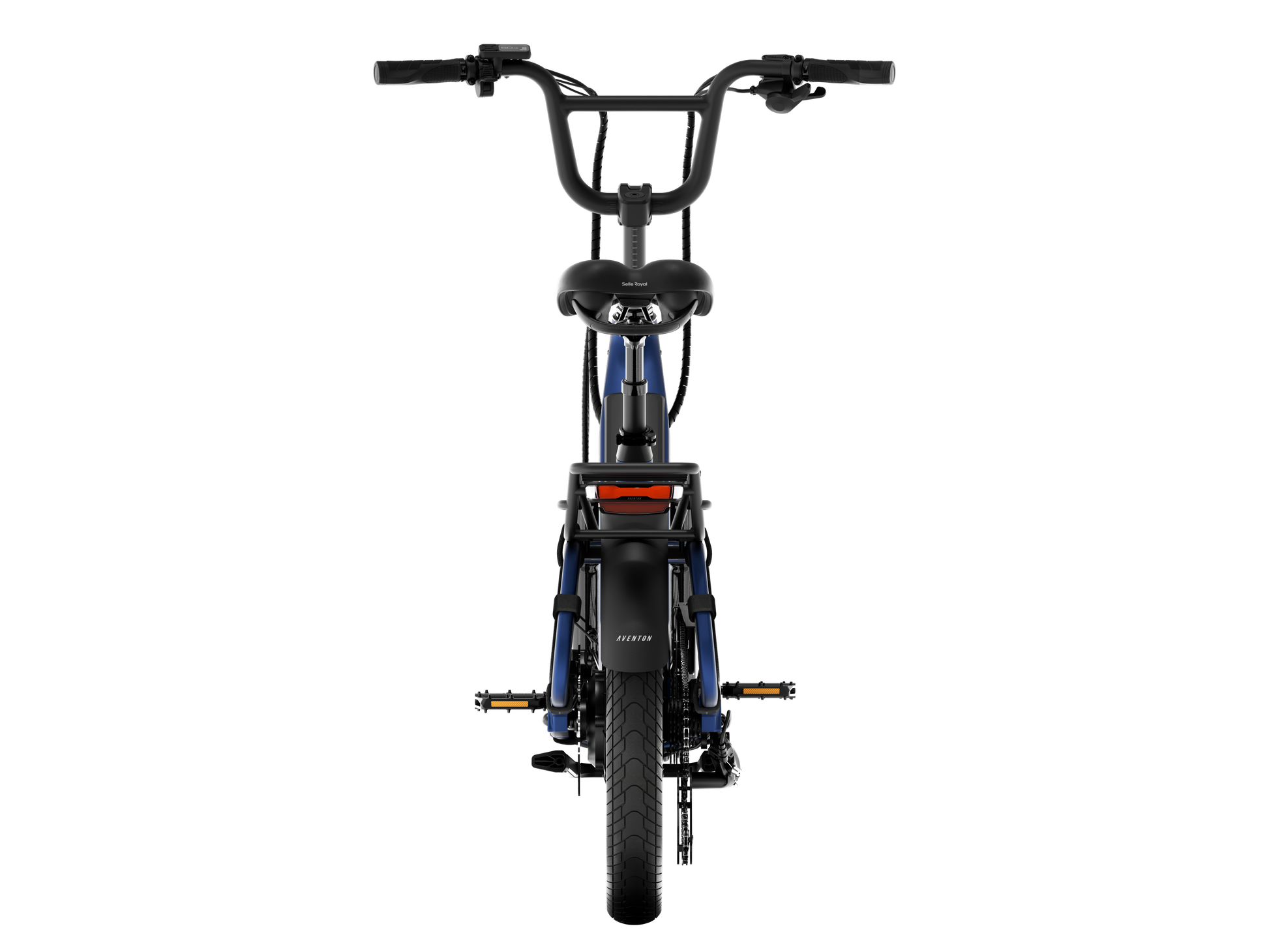

Abound SR Ebike

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.



Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.



It’s SRsly fun.

General Info
Model
Abound SR Ebike
Weight
80 lbs
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Ebike Class
Class 2 Ebike
Water Resistance
IPX4
Ideal Use
Cargo & Utility
Pedal Assist
3 Levels (with Ride Tune Customization)
Safety Certifications
UL and TUV Safety Certified
UL 2849
Range
Up to 60 miles
Folding
No
Battery Safety Certifications
Certified to UL 2271
Carry Capacity
Carry A Single Passenger
Frameset
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style
Step-Through
Frame
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Wheelset
Tires
20 x 3.0 urban tire with reflective sidewalls
Wheels
20-inch, 12-gauge, 36-hole, double-wall aluminum, black
Ebike System
Motor Torque
80Nm
ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
Aventon 4A 42V
Display
Aventon BC147
Speed
Class 2
Battery
Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Brakes
Rear Brake Rotor
Tektro 203mm 6 bolt
Front Brake
Tektro HD-E3520 hydraulic disc brakes
Rear Brake
Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Chain
122 Link, 8 Speed
Chainring
52 tooth
Crank
3pc, 165mm crank arm
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shift Lever
Shimano SL-M315-8R 8 Speed
Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon by SelleRoyal
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars
BMX Style, 31.8mm bar clamp, 680mm width
Stem
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp
34.9mm Quick Release
Grips
Lock-on ergonomic
Included Accessories
Rear Rack
Included
Kickstand
Included: E-lock
Rear Wheel Mesh Guards
Included
Rear Rack Weight Limit
143 lbs

Technical Overview
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your ebike in light rain. It won't be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your ebike. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
